Furniture & hardware

The desk

Professional · TPI Aerospace Limited · 2023–2025 · publicly shown

Type. 29 mixer

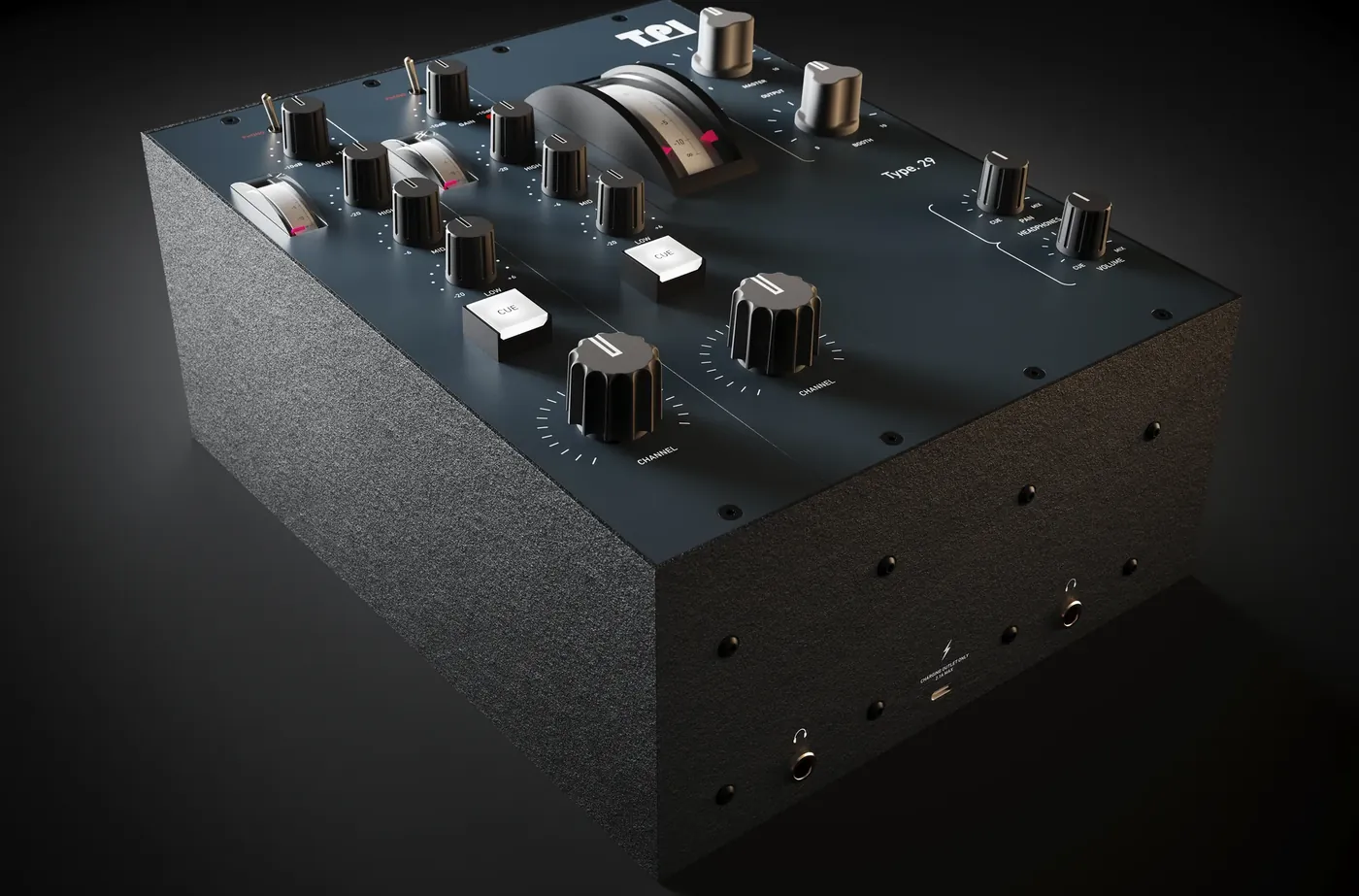

Type. 29 mixer from the front three-quarter: a blue-grey panel of channel strips with rotary controls and a central VU meter.
Type. 29 with its channel modules fitted side by side across the top panel.Render: Northern Artillery; 3D model and product details: James Mason

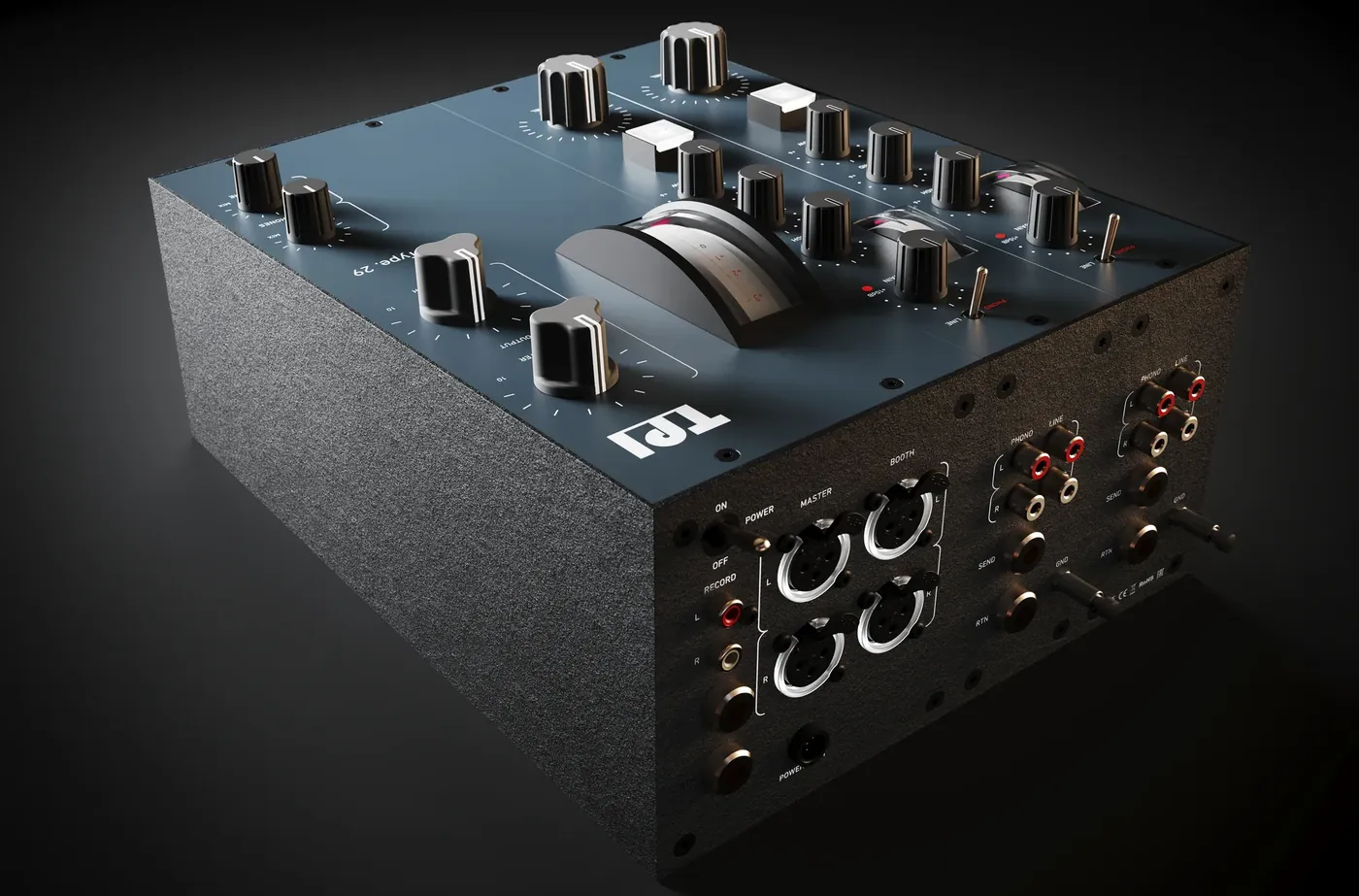

Type. 29 from the rear three-quarter, with XLR and RCA connectors aligned beneath each channel module.
Rear panel: each module carries its own connectors, so the connections follow the channel layout.Render: Northern Artillery; 3D model and product details: James Mason

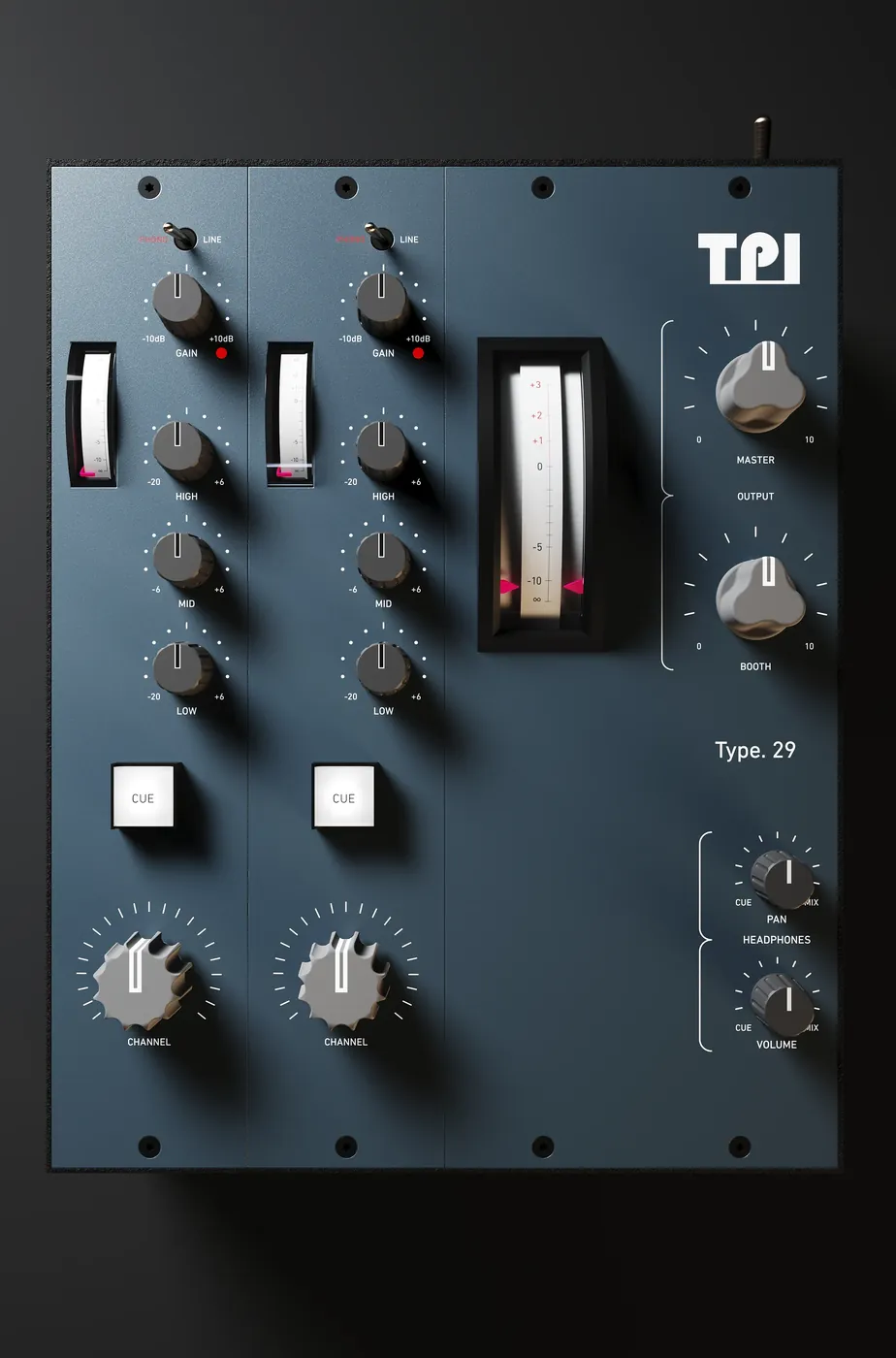

Top-down view of the Type. 29 control surface with channel strips, a master section and a VU meter.
Plan view of the control surface.Render: Northern Artillery; 3D model and product details: James Mason

Mechanical design of a fully analogue mixer built from interchangeable, fully removable channel modules, so each chassis can be specified for its owner.

My role

I did the mechanical design of the chassis, panels and module system; the circuit design was Steve Ireland's.

  • Mechanical design of the chassis, panels and module system
  • 3D models and product details for the renders
  • A component calculator I built independently in Google Sheets

Outcome

TPI has announced Type. 29 in 2, 4, 6 and 8-channel chassis with Phono/Line and Class A Mic/Line modules. It is installed at Tomodachi, Ibiza; wider release is still to come.

Credits

  • Analogue circuit design: Steve Ireland, Redstreak Limited
  • Renders: Northern Artillery, from my 3D models
