Sound systems

The desk

Professional · TPI Aerospace Limited · released

Cinema and Movement ranges

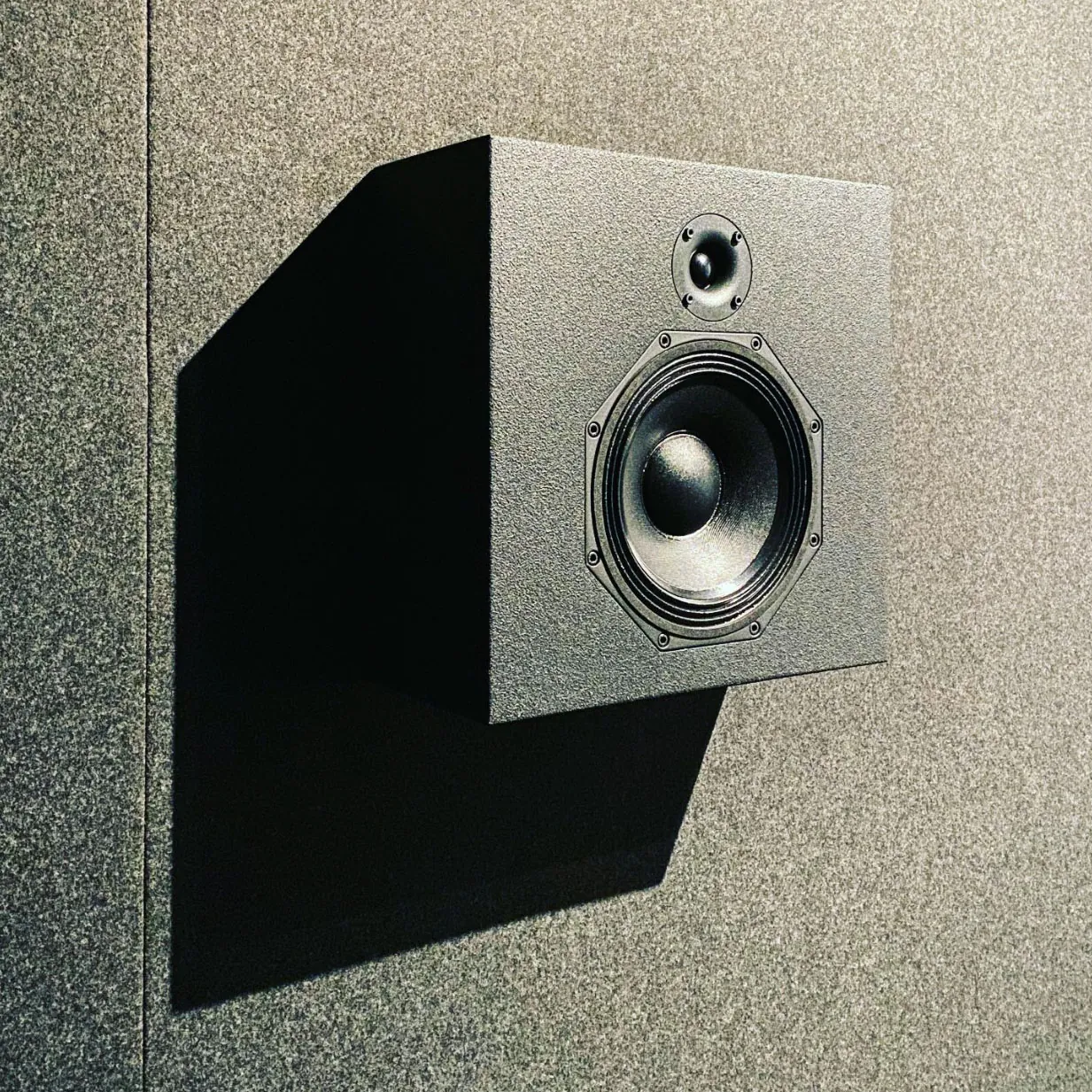

A black, wedge-shaped Type. 2-8 surround speaker fixed to a textured wall and angled downwards, with a tweeter above a larger driver.
Type. 2-8 surround speaker.Photo: TPI in-house photographer

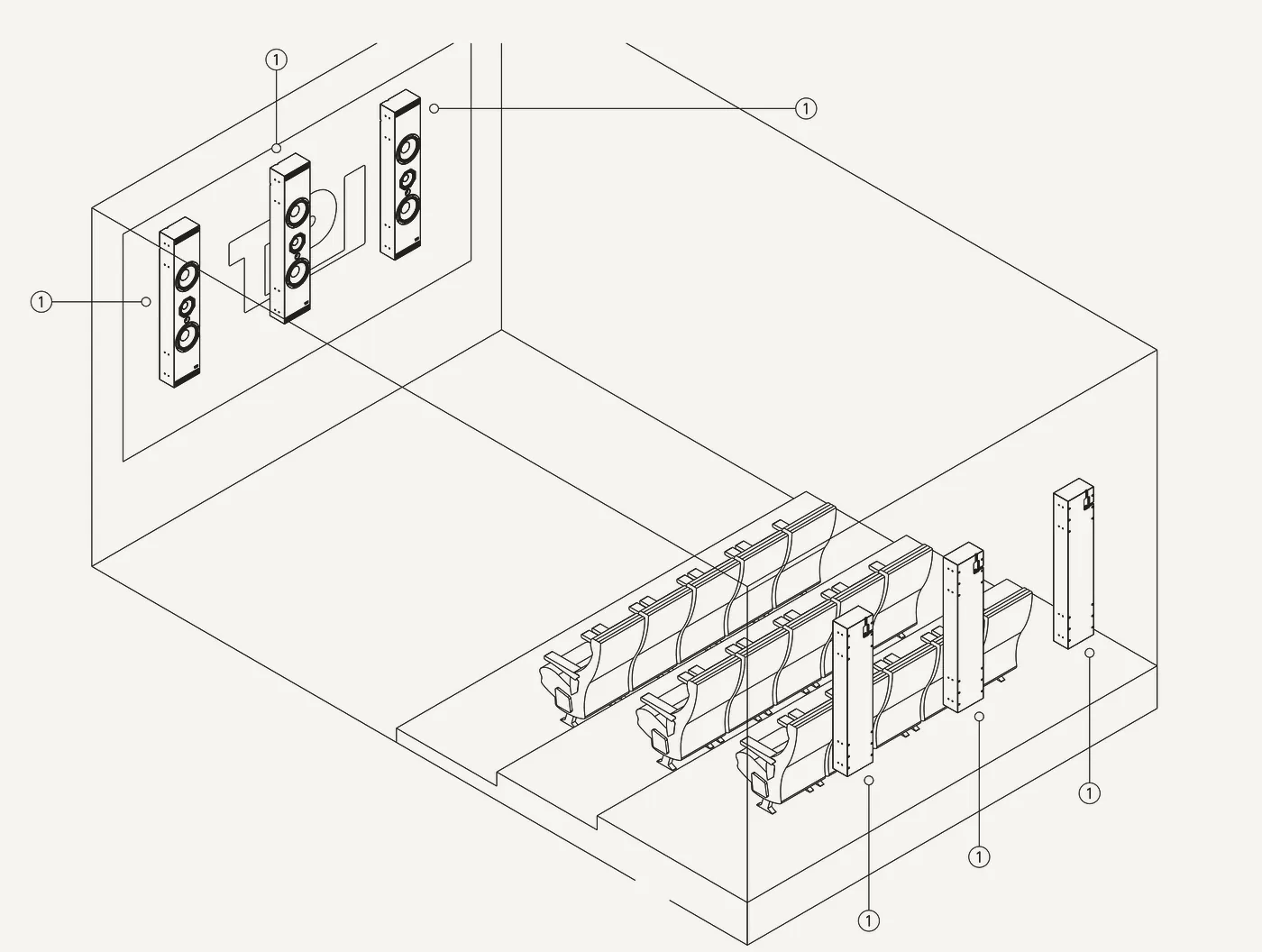

Isometric line drawing of a cinema room: rows of seats facing a screen wall of three speakers, with surround speakers along the walls and numbered callouts marking each position.
Suggested speaker positions in a cinema room, from TPI's Cinema Range Specifications (2023).Line drawing: James Mason

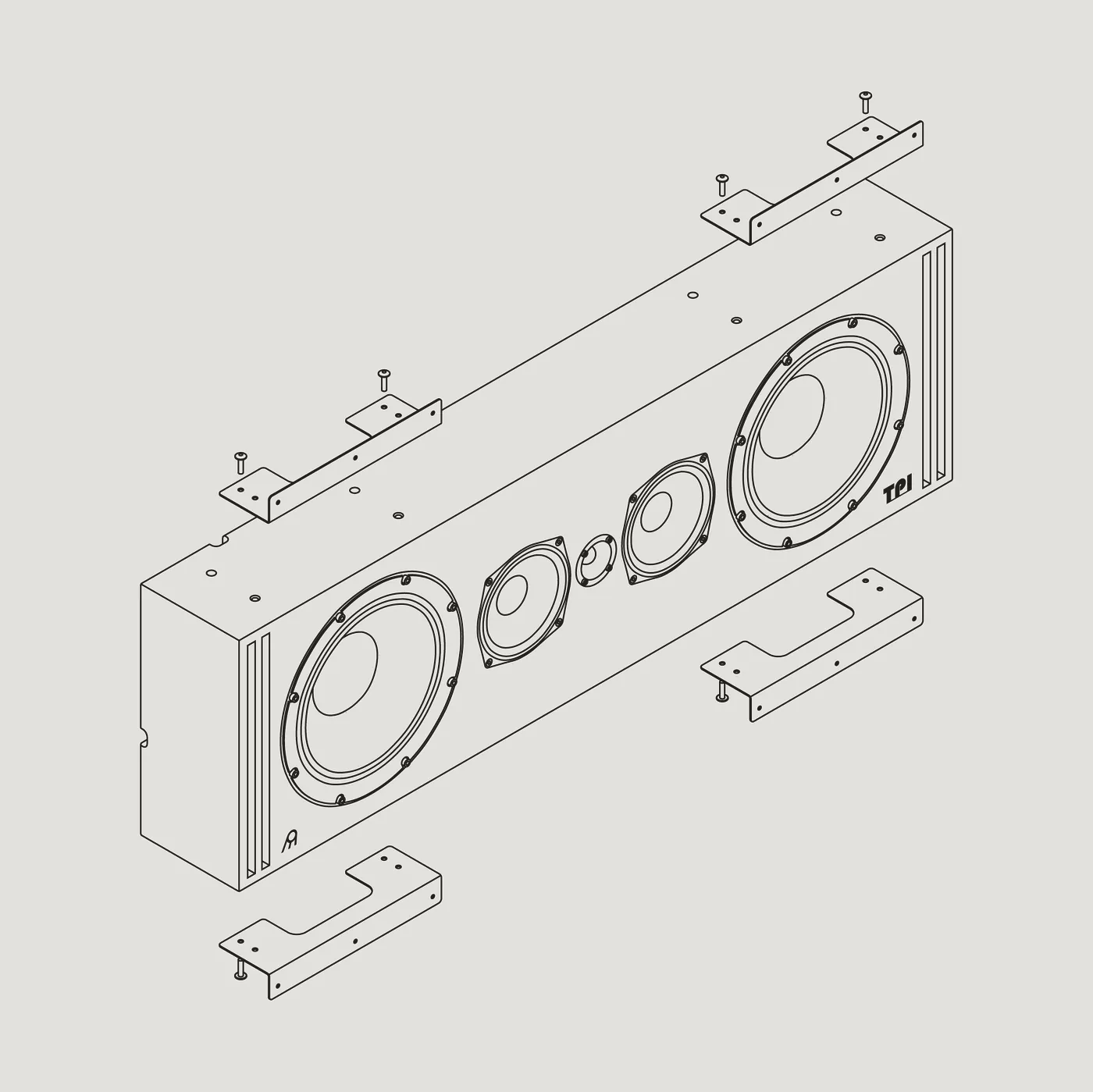

Isometric line drawing of the Movement L: a long, shallow cabinet with a large driver at each end, smaller drivers and a tweeter between them, and mounting brackets.
Type. Movement L, the largest of the three screen speakers.Line drawing: James Mason

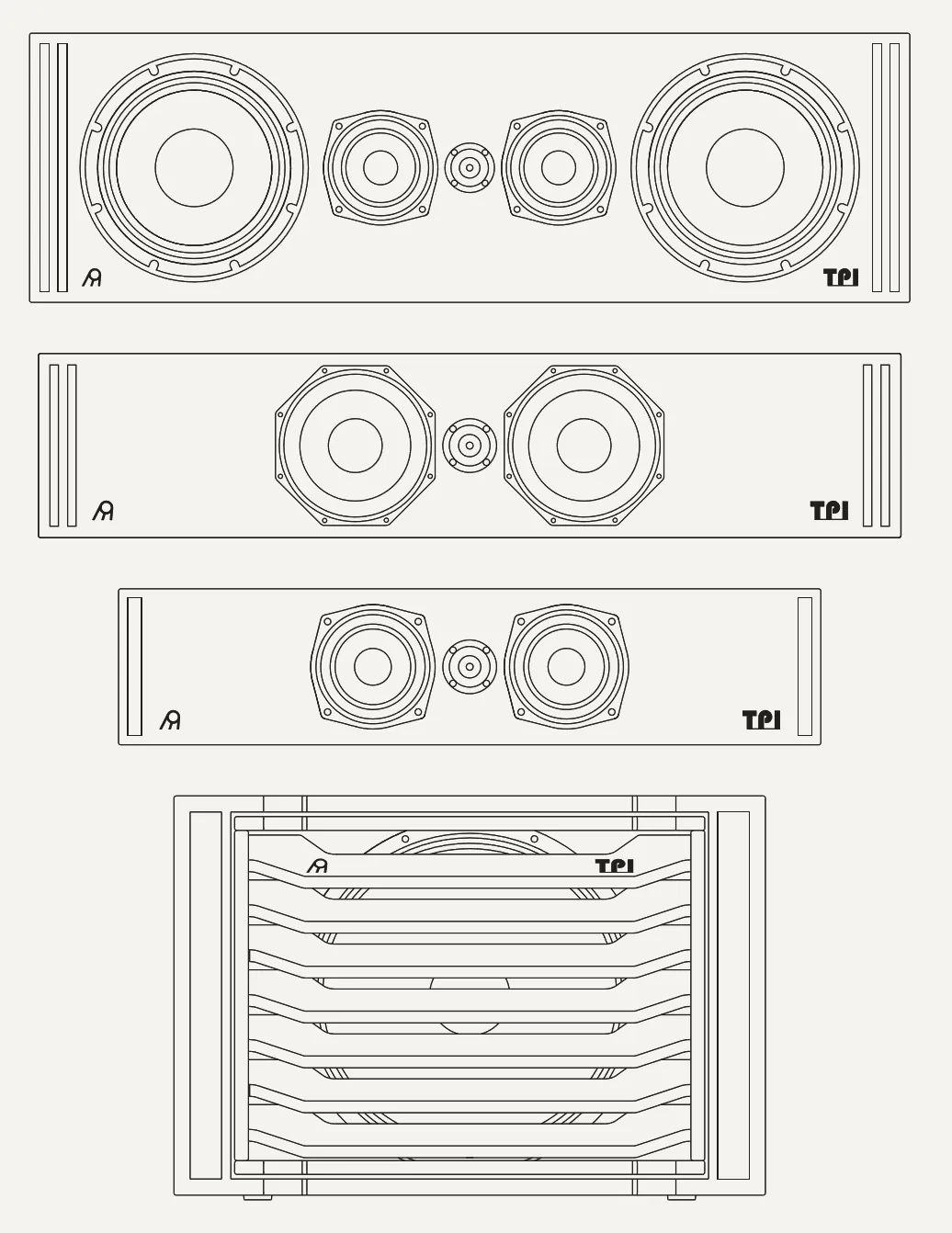

Front line drawings of the Movement range stacked by size: the L, M and S screen speakers above the slotted Movement Sub.
The Movement range: L, M and S screen speakers and the Movement Sub, from TPI's Movement brochure.Line drawings: James Mason

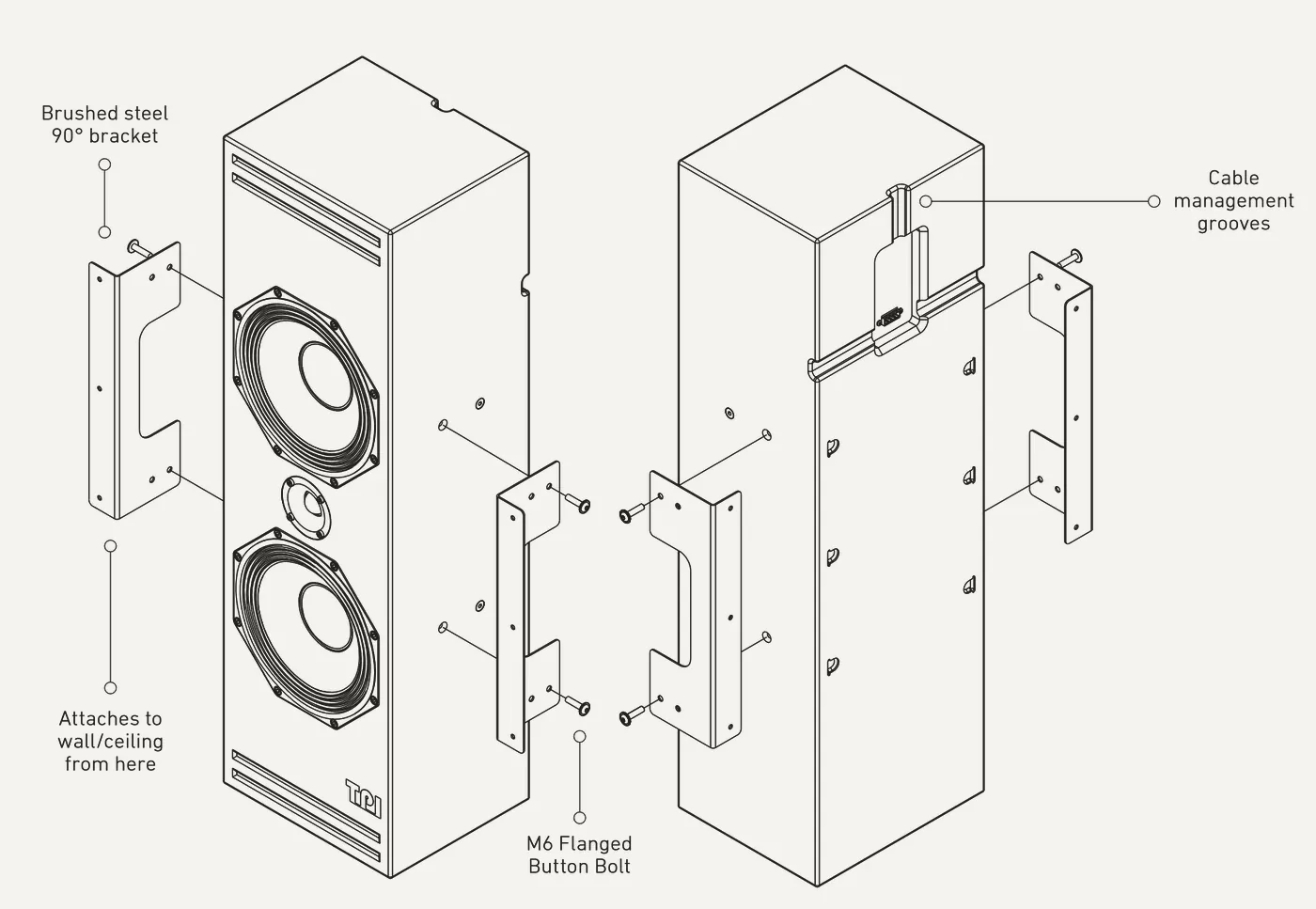

Line drawing of the tall, slim Type. 3-8SL from the front and back, with callouts for its brushed steel brackets, cable management groove and fixings.
Type. 3-8SL mounting options, from TPI's Cinema Range Specifications (2023).Line drawing: James Mason

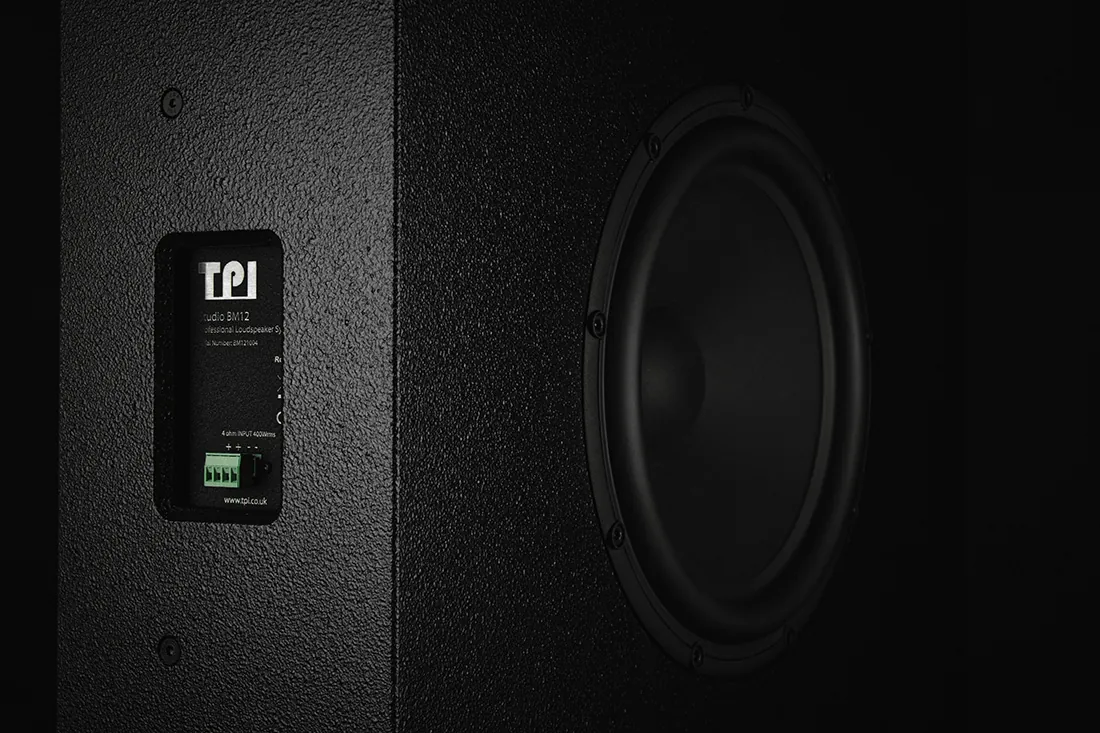

Close-up of a black Type. BM-12 cabinet in low light: the TPI badge and connection panel beside a large driver.
Type. BM-12 bass-management speaker.Photo: TPI in-house photographer

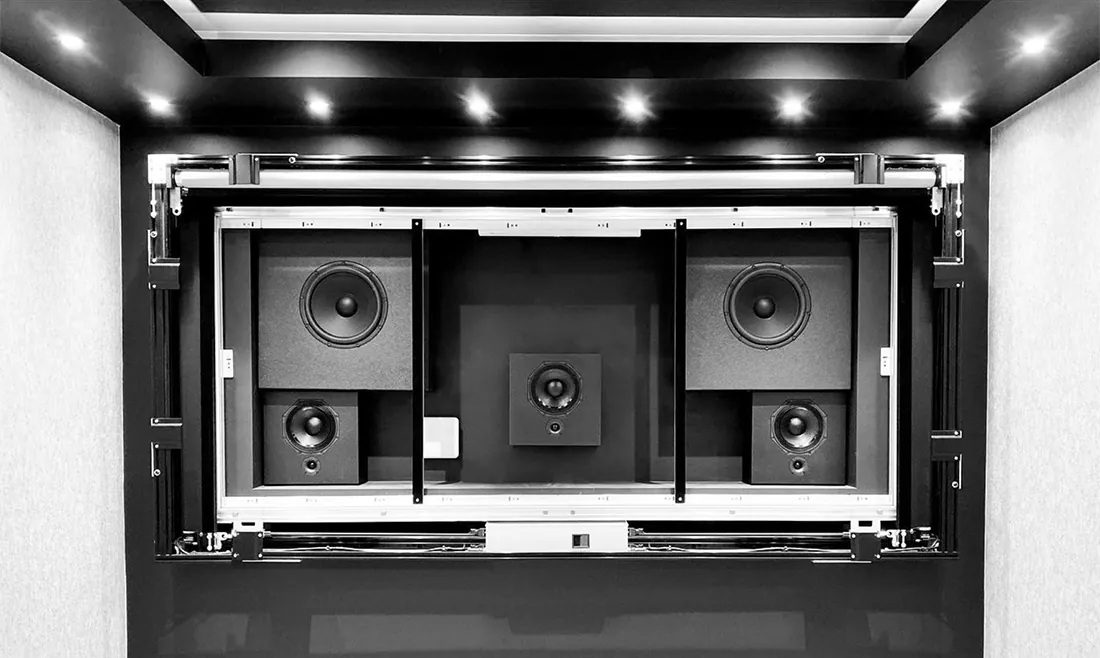

A cinema screen wall seen straight on: speakers set into a black frame where the screen will hang, lit by ceiling downlights.
Speakers built into a cinema screen wall.Photo: TPI in-house photographer

Two ranges of cinema loudspeakers for TPI. The cinema range covers screen, surround, subwoofer and bass-management models for cinemas, screening rooms and studios. Movement is for direct-view LED screens: the Movement L, M and S sit in arrays above and below the screen, and TPI's signal processing blends them so the sound appears to come from the picture.

My role

I did all the design and engineering for both ranges, through to the production drawings; the acoustic engineering was Ian Knight's.

  • All design and engineering for every model in the cinema range — screen, surround, subwoofer and bass-management speakers — and the Movement range
  • The enclosure for the Movement controller
  • Manufacturing and production drawings and files
  • All the line drawings for the cinema and Movement ranges, as used in TPI's specifications and brochure

Outcome

Released. Both ranges are listed on TPI's website.

Credits

  • Acoustic engineering: Ian Knight
  • Product photographs: TPI in-house photographer
  • Movement controller electronics and signal processing: TPI
