Sound systems

The desk

Professional · TPI Aerospace Limited · 2024 · concept

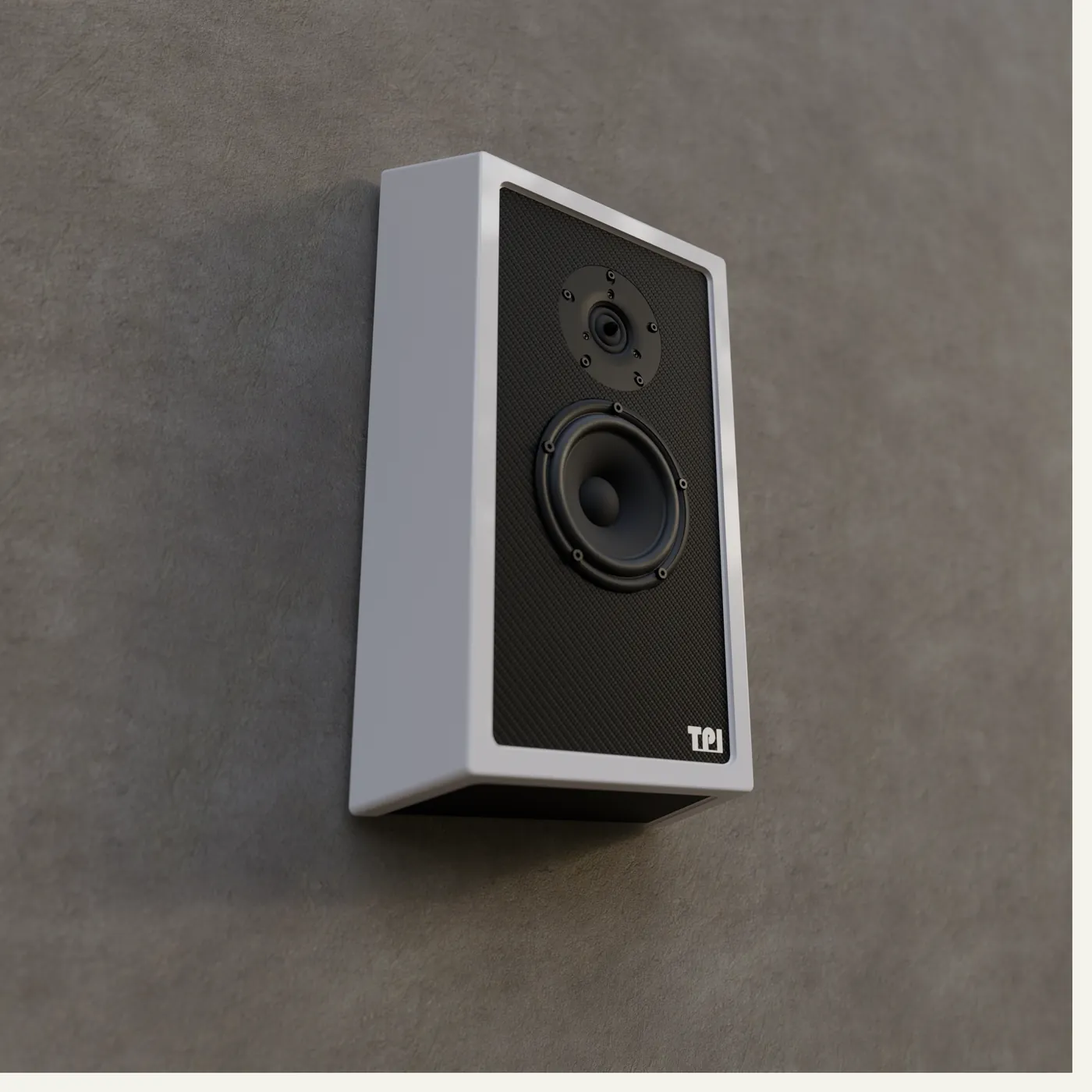

Render of Picture on a textured wall: a white angled cabinet with a dark baffle holding a tweeter above a mid-bass driver.
Picture on the wall.Render: James Mason

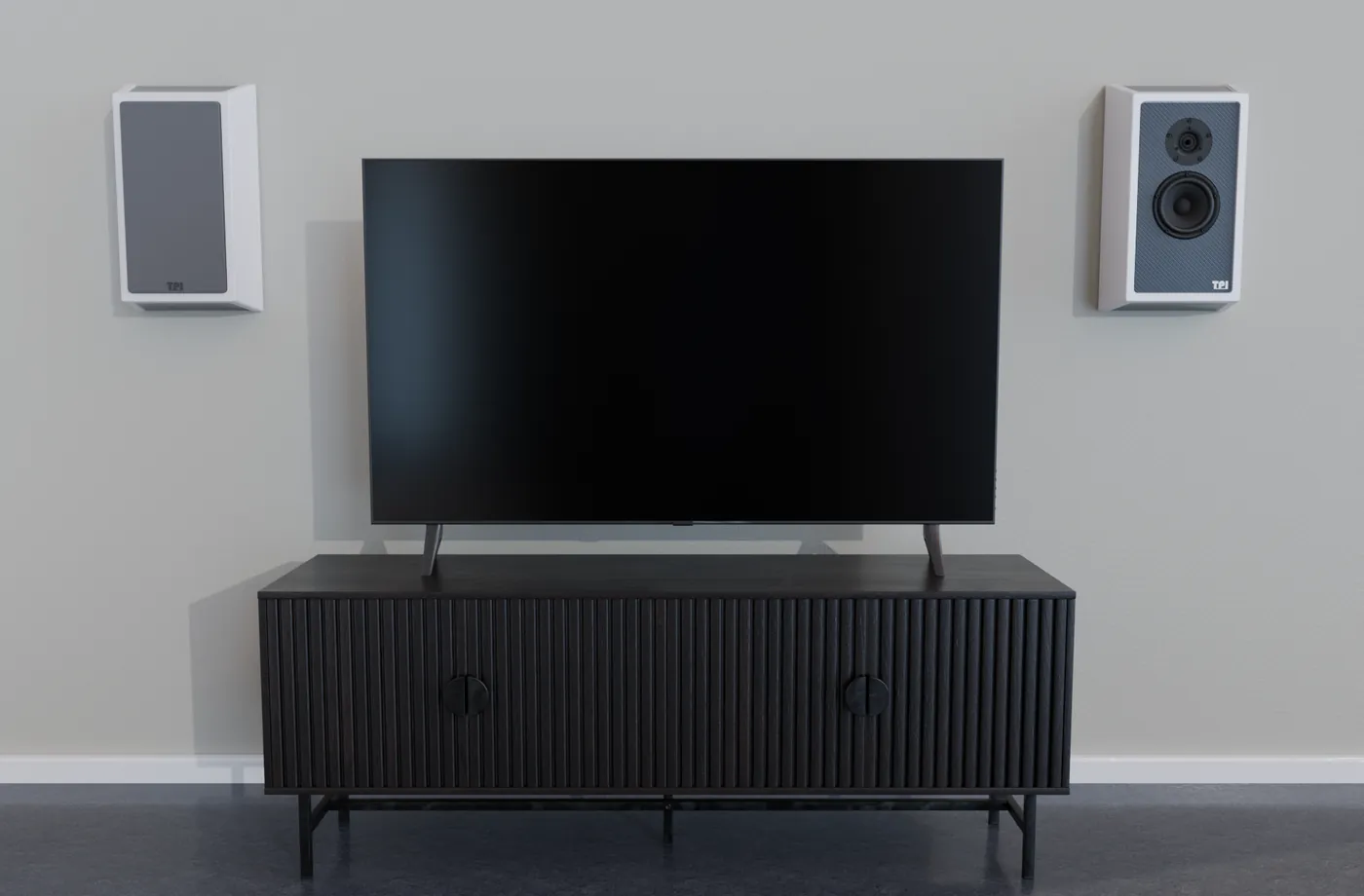

Render of a living room: a pair of Picture speakers on the wall either side of a TV standing on a dark sideboard, one with its grille fitted.
A pair either side of a TV.Render: James Mason

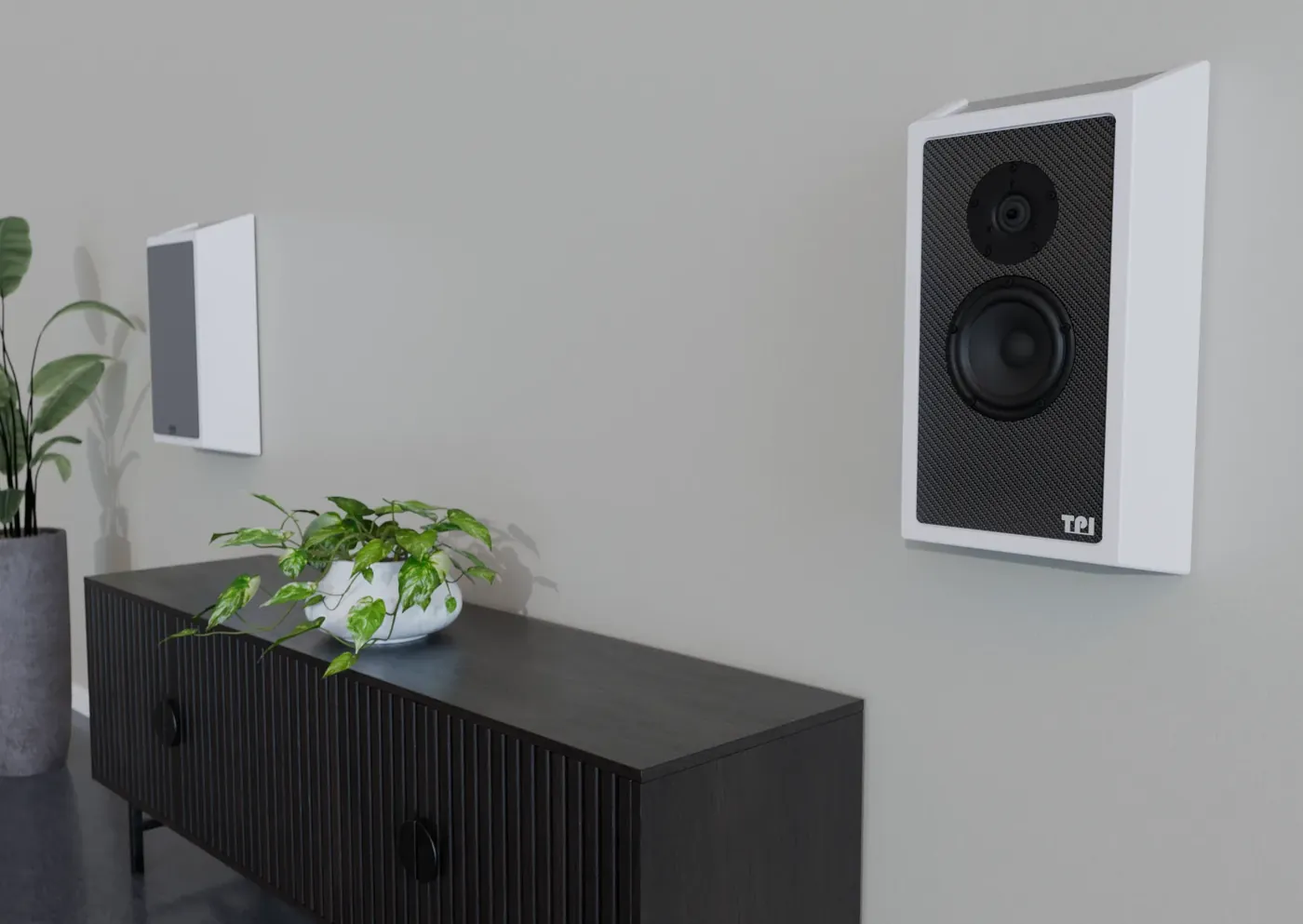

A white wall-mounted speaker with an angled cabinet beside a TV unit in a living room.
Picture in a living-room setting.Render: James Mason

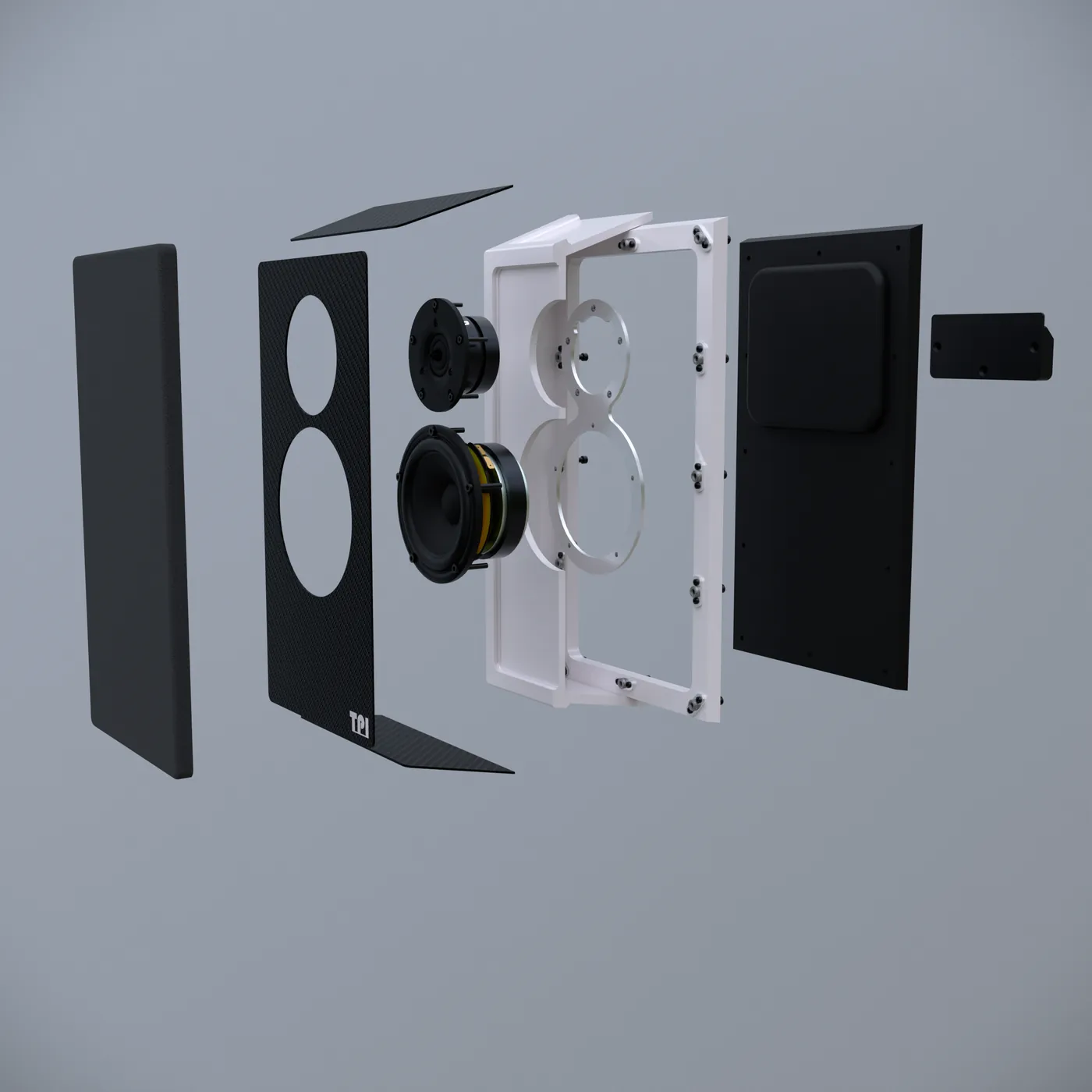

Exploded render of Picture against pale blue-grey: dark front panels, the tweeter and mid-bass driver, a white frame with fixings, a dark rear panel and a small bracket.
Exploded view.Render: James Mason

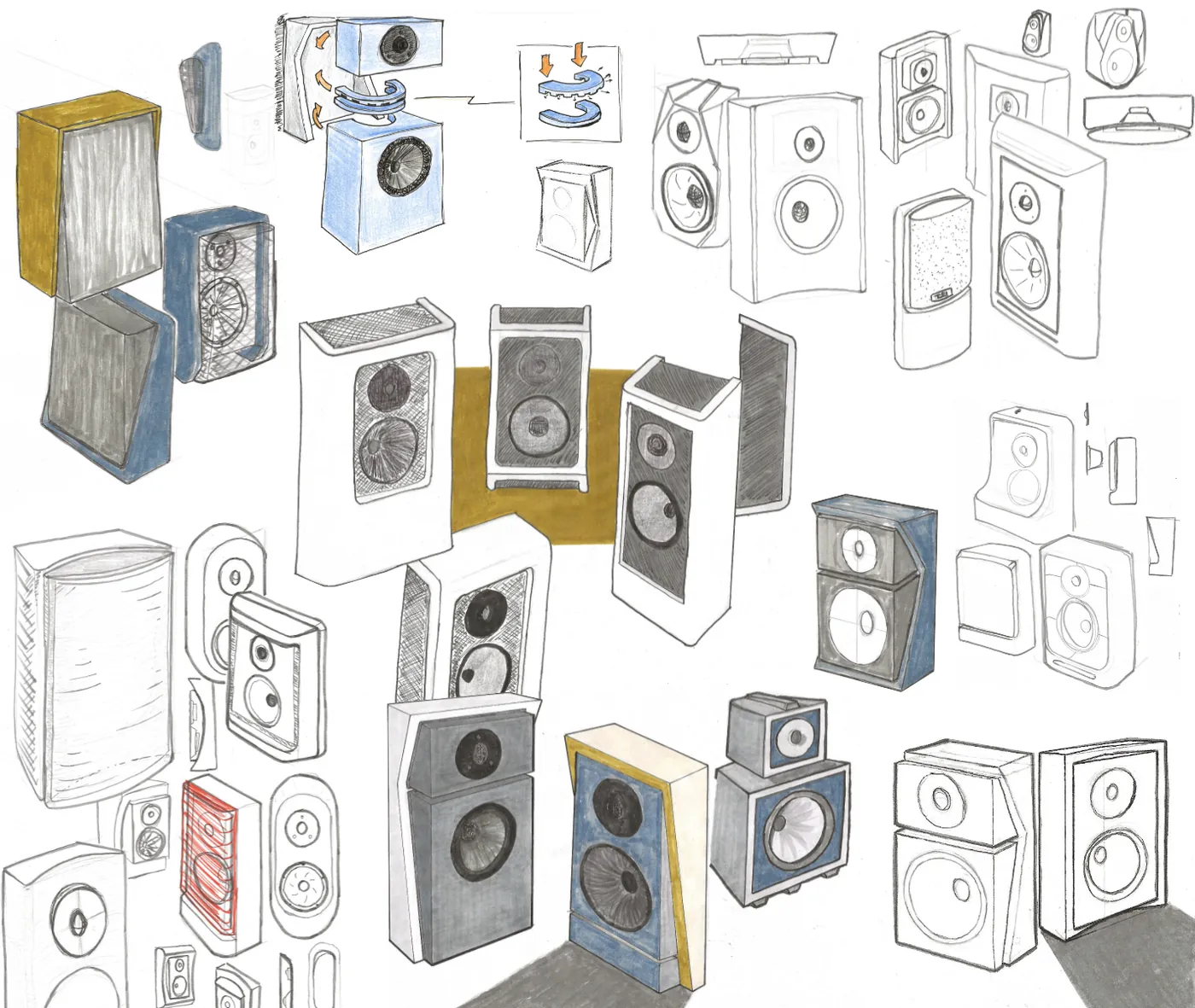

A sheet of pencil and marker sketches of wall-mounted speaker ideas: angled and wedge-shaped cabinets, framed baffles and grilles, some coloured mustard, blue and red, and a wall-mounting detail drawn with arrows.
Ideation sketches, July 2024.Sketches: James Mason

A compact wall-mounted loudspeaker, developed in response to distributor feedback, for rooms where a full cinema system isn't practical. It was designed for efficient in-house manufacture, easy installation and visual discretion, and presented as a concept at an AV show in Denver.

My role

I designed and engineered it, from the first sketches to CAD and renders.

  • Design and engineering, from the July 2024 ideation sketches to CAD
  • The renders, exploded and in situ

Brief

Distributor feedback pointed to rooms where a full cinema system isn't viable. Picture answers with a compact speaker that hangs on the wall beside the screen and stays visually discreet.

Sketches

The July 2024 ideation sheet explores forms for the wall: angled and wedge-shaped cabinets, framed baffles and grilles, colour studies and a wall-mounting detail.

Design and engineering

The chosen design pairs a white angled cabinet with a dark baffle carrying a tweeter and a mid-bass driver. The exploded render lays out its parts, from the front panels and drivers to the white frame and rear panel, with manufacture in TPI's own workshop and quick installation in mind.

Outcome

Presented as a concept at an AV show in Denver.
