Sound systems

The desk

Professional · TPI Aerospace Limited · 2021–2023 · released

Type. HF range

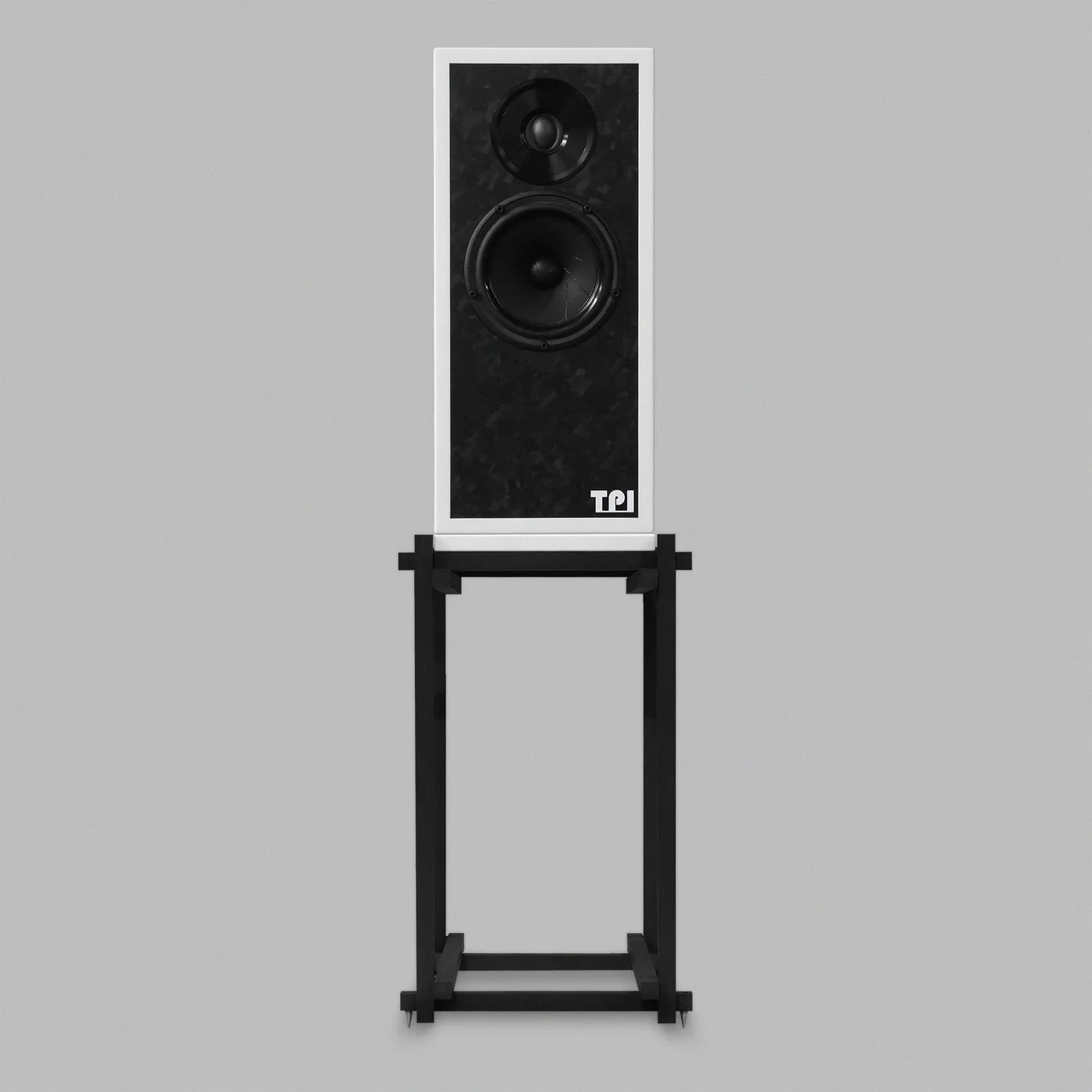

Type. HF1 on its stand, from the front: a white cabinet with a black speckled baffle holding a tweeter above a mid-bass driver, on an open black stand made from square-section bars.
Type. HF1 on its stand, front.Photo: TPI in-house photographer

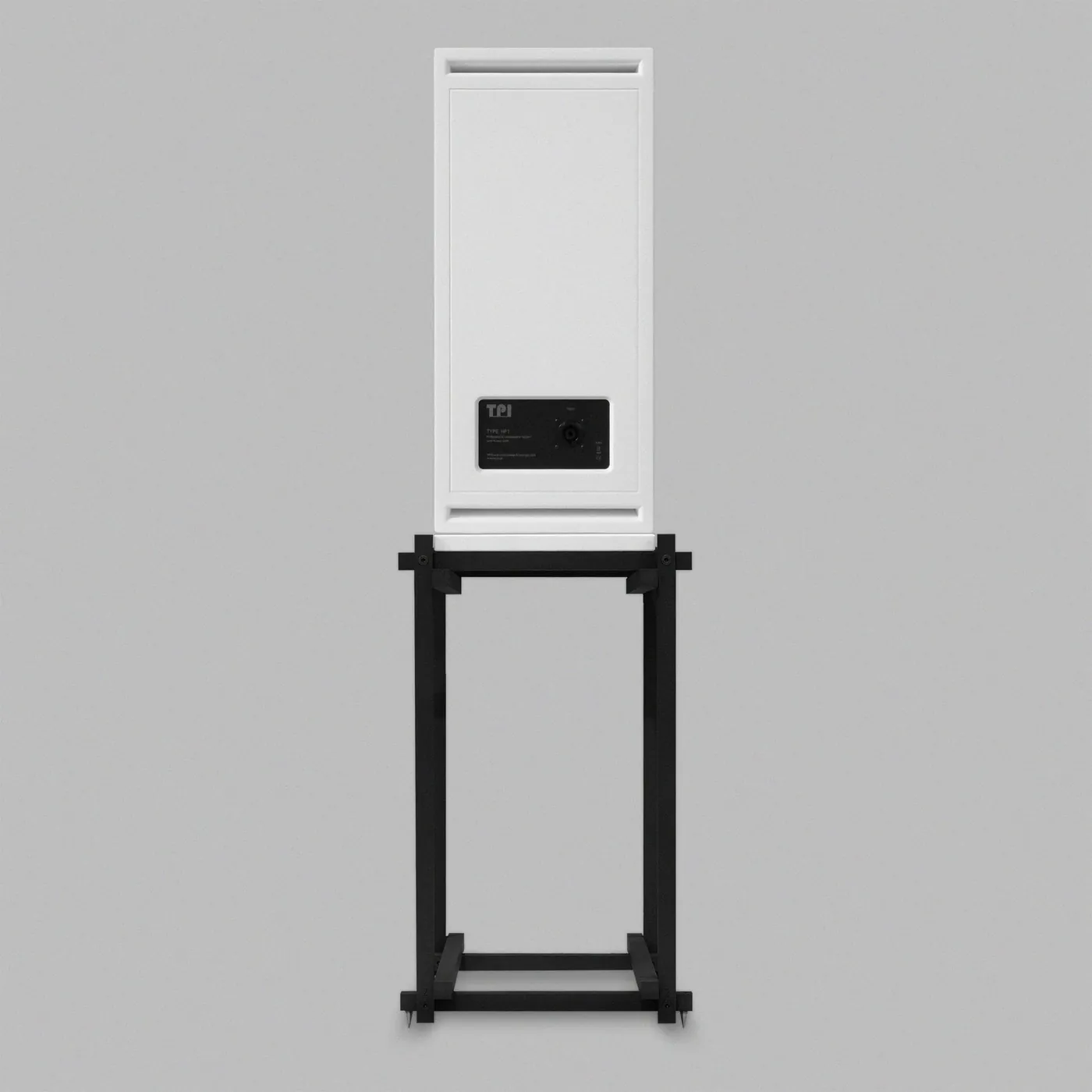

Rear of the Type. HF1 on its stand: a plain white back with a slot at the top and a black connection plate, on the open black square-bar stand.
Type. HF1 on its stand, back.Photo: TPI in-house photographer

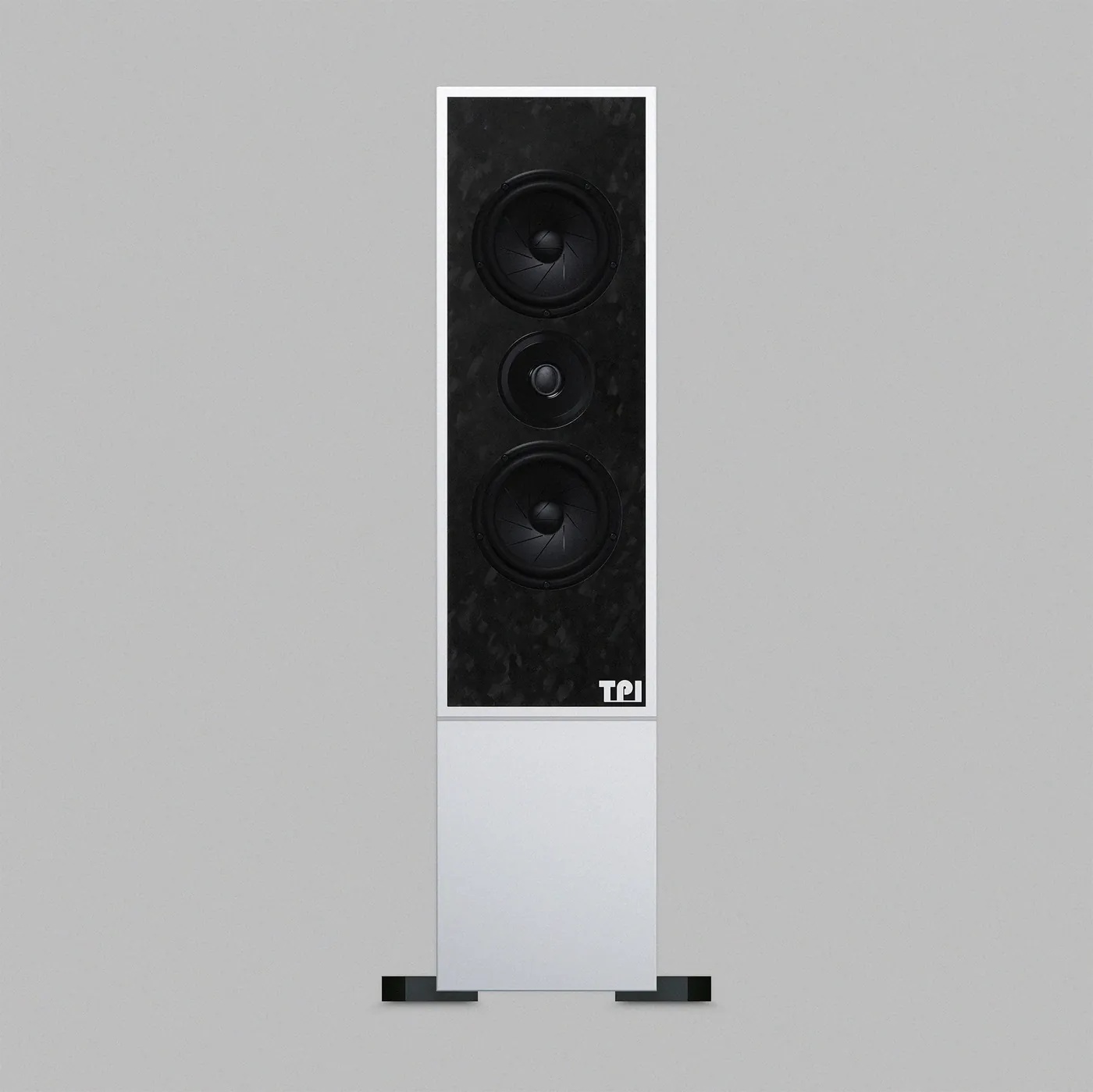

Type. HF2 MK2 floor-standing loudspeaker: a tweeter between two mid-bass drivers in a tall black speckled baffle above a white base.
Type. HF2 MK2, front.Photo: TPI in-house photographer
Rear of the Type. HF2 MK2: a tall white cabinet with speaker terminals and a slotted vent near the base.
Type. HF2 MK2, back.Photo: TPI in-house photographer

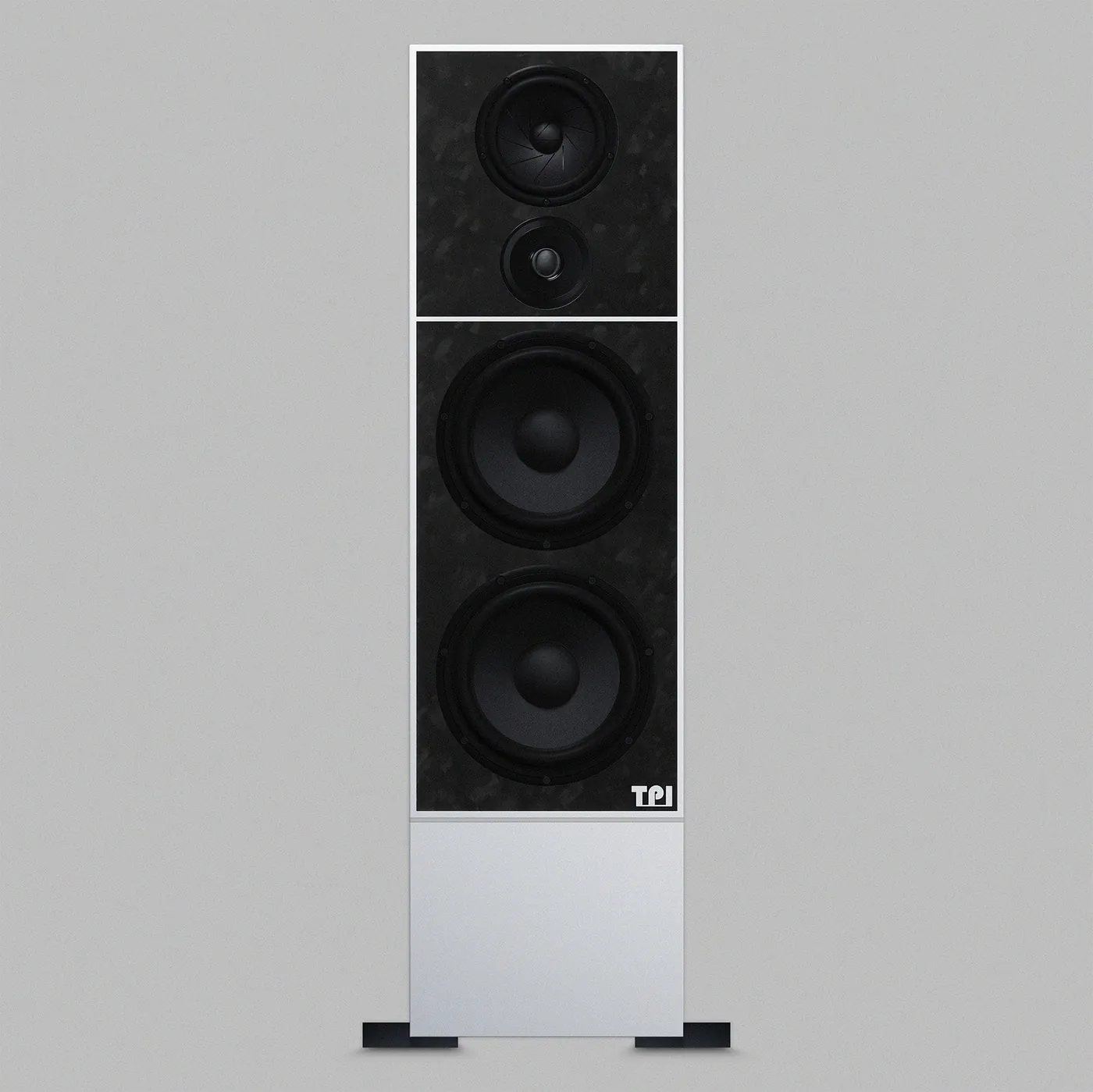

Type. HF3 floor-standing loudspeaker: tweeter and midrange above two large bass drivers in a black speckled baffle, over a white base.
Type. HF3, front.Photo: TPI in-house photographer

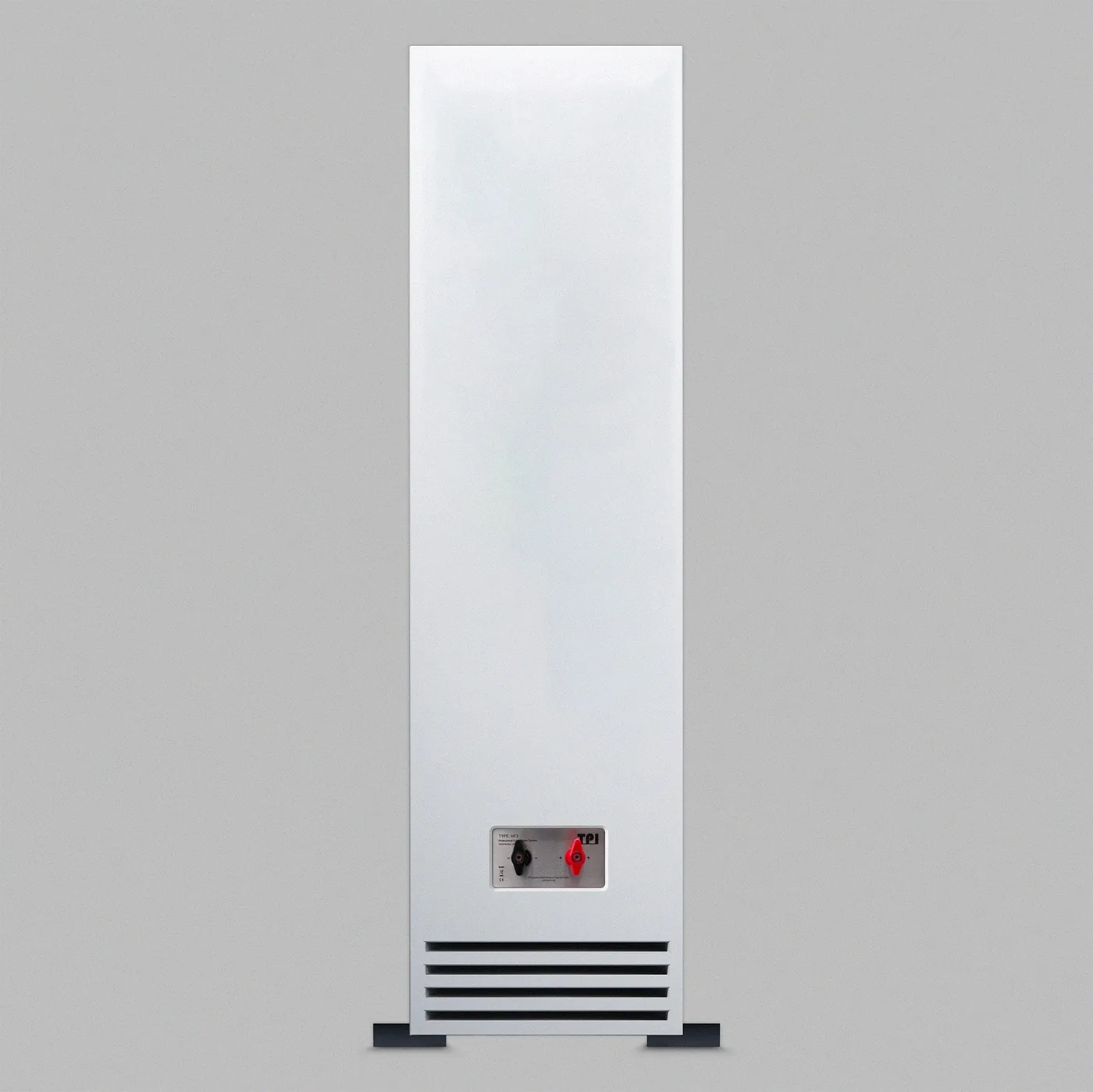

Rear of the Type. HF3: a white cabinet with speaker terminals and slotted vents near the base.
Type. HF3, back.Photo: TPI in-house photographer

A family of hi-fi loudspeakers — HF1, HF2, HF3 and CF1 — with solid-surface cabinets developed with TPI's workshop, standing on machined feet with integrated spikes.

My role

I did the design, engineering and 3D models for every model; the acoustic and crossover design was Ian Knight's.

  • Design, engineering and 3D models for every model in the range
  • The HF1 stand
  • Solid-surface cabinets developed with TPI's workshop
  • Machined feet with integrated spikes, developed with Thunder Engineering
  • The range dimension sheet and general-dimensions drawings

Outcome

Released and made to order. HF1, HF2 MK2 and HF3 each have a product page on TPI's website.

Credits

  • Acoustic and crossover design: Ian Knight
  • Product photographs: TPI in-house photographer
  • Renders: Stephen Green at Bib Design, from my 3D models

TPI: Type. HF1TPI: Type. HF2 MK2TPI: Type. HF3
